Smart. Plug & Play. Efficient.
The ReefMat is a plug & play, fully automated, smart fleece roller filter that keeps your aquarium water crystal clear for weeks at a time.
Designed with the hobbyist in mind, the ReefMat features an easy fleece-mat replacement system that allows you to switch rolls without having to remove the filter from the sump or turn off the pumps.
Note: Suitable for seawater aquariums only.
*This animation features the ReefMat 500

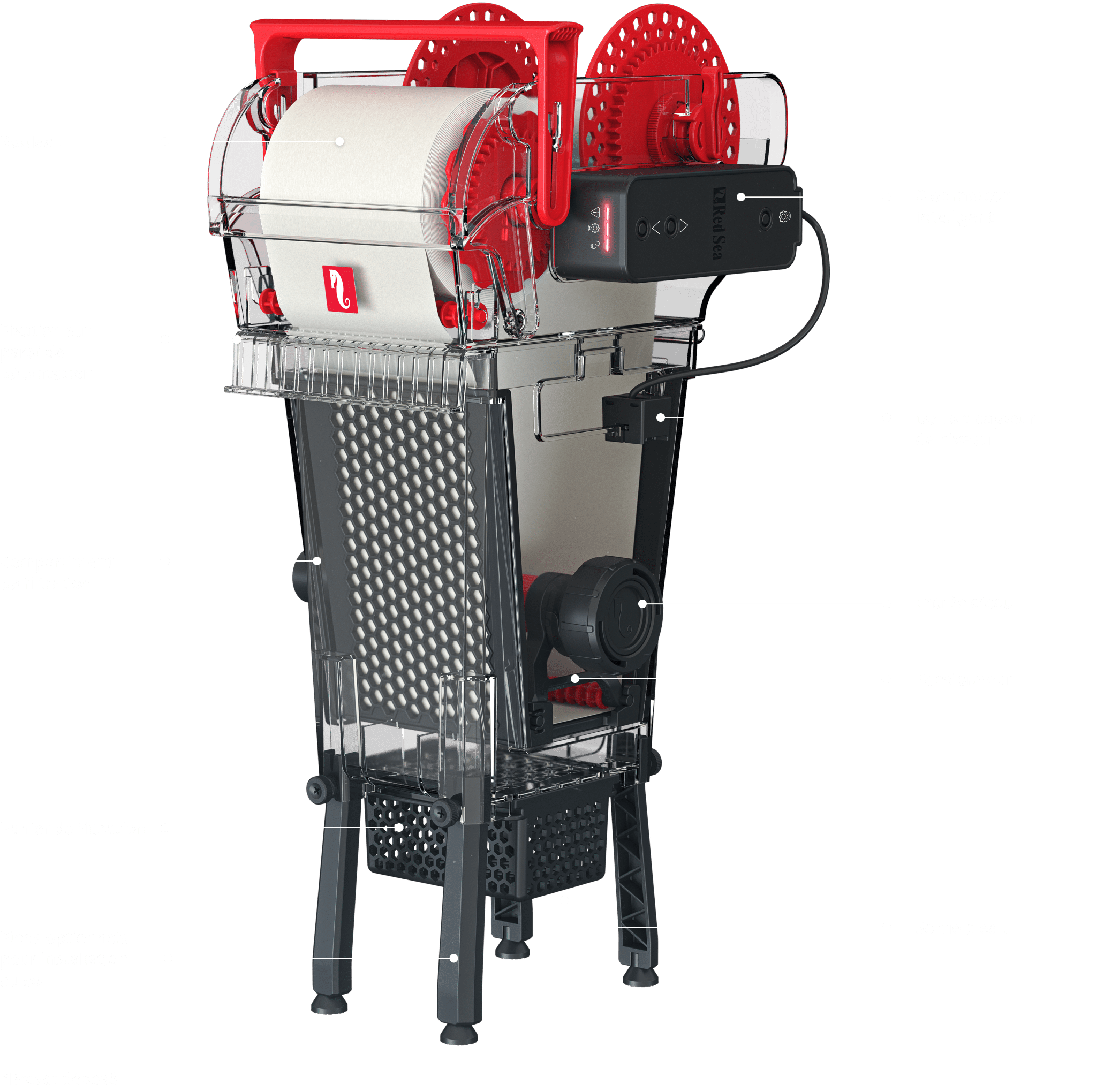

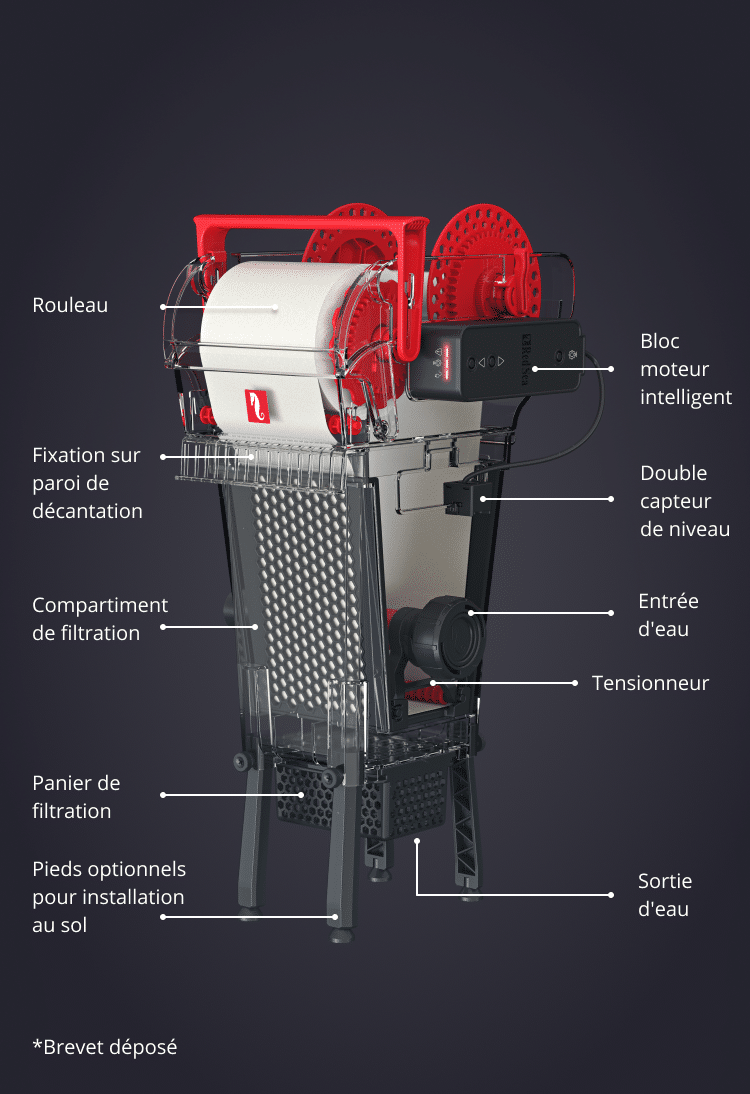

The ReefMat components
ReefMat 250
66 gal
Recommended for systems up to
900 gal
Max. flow capacity per hour
3.2”
Fleece-mat width
105′
Fleece-mat length
6.3” x 7.9” x 19.3”
Dimensions

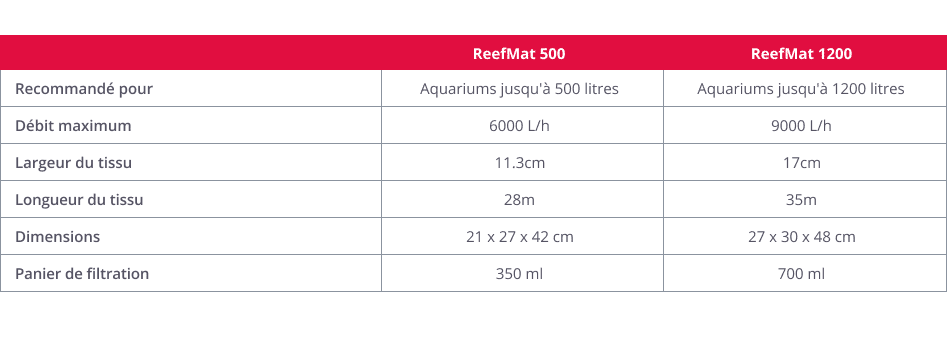

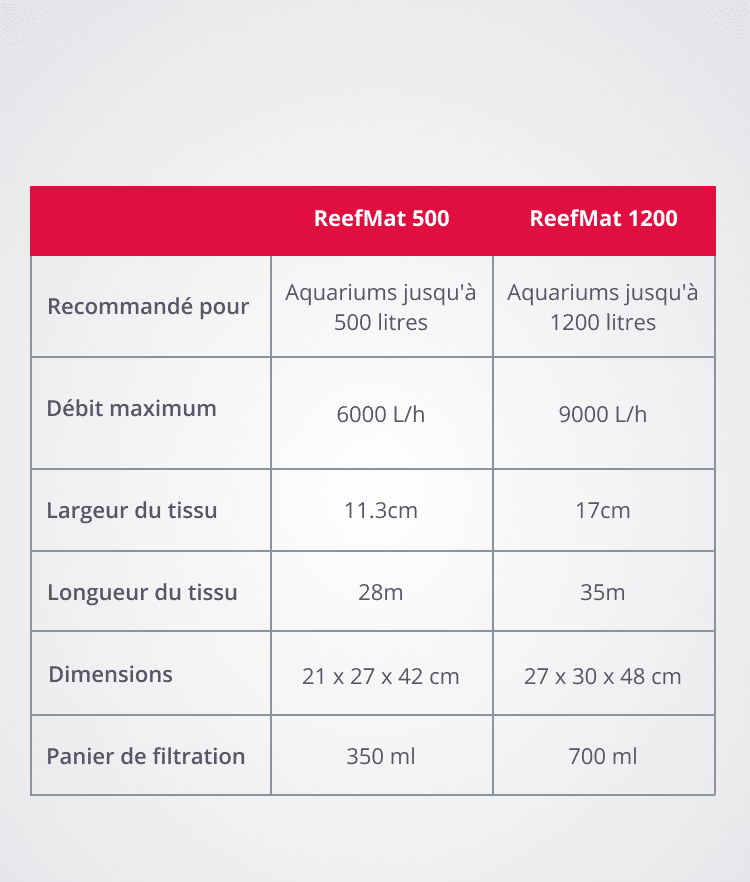

ReefMat 500
130 gal
Recommended for systems up to
1580 gal
Max. flow capacity per hour
4.4”
Fleece-mat width
92′
Fleece-mat length
8.3” x 10.6” x 16.7”
Dimensions
ReefMat 1200
315 gal
Recommended for systems up to
2380 gal
Max. flow capacity per hour
6.7”
Fleece-mat width
115′
Fleece-mat length
10.6” x 11.8” x 18.9”
Dimensions
Mounting and installation
The ReefMat is designed to hang on the front wall of the sump for ease of operation
It also has optional legs for a freestanding installation
Both the Drive-unit and inlet hose can be positioned on either side of the ReefMat, as best suits your specific installation
The ReefMat includes a kink-resistant, corrugated (32mm/1.25” ID) inlet hose with a PVC universal connector (suitable for both metric and USA piping)
Integrated media basket for additional chemical filtration
Hanging option
Optional legs
Drive-unit installation
Inlet hose
Media busket
Home
Page
End of Roll
Monitor
Performance
Log
Customized
Dispensing
Roll
history

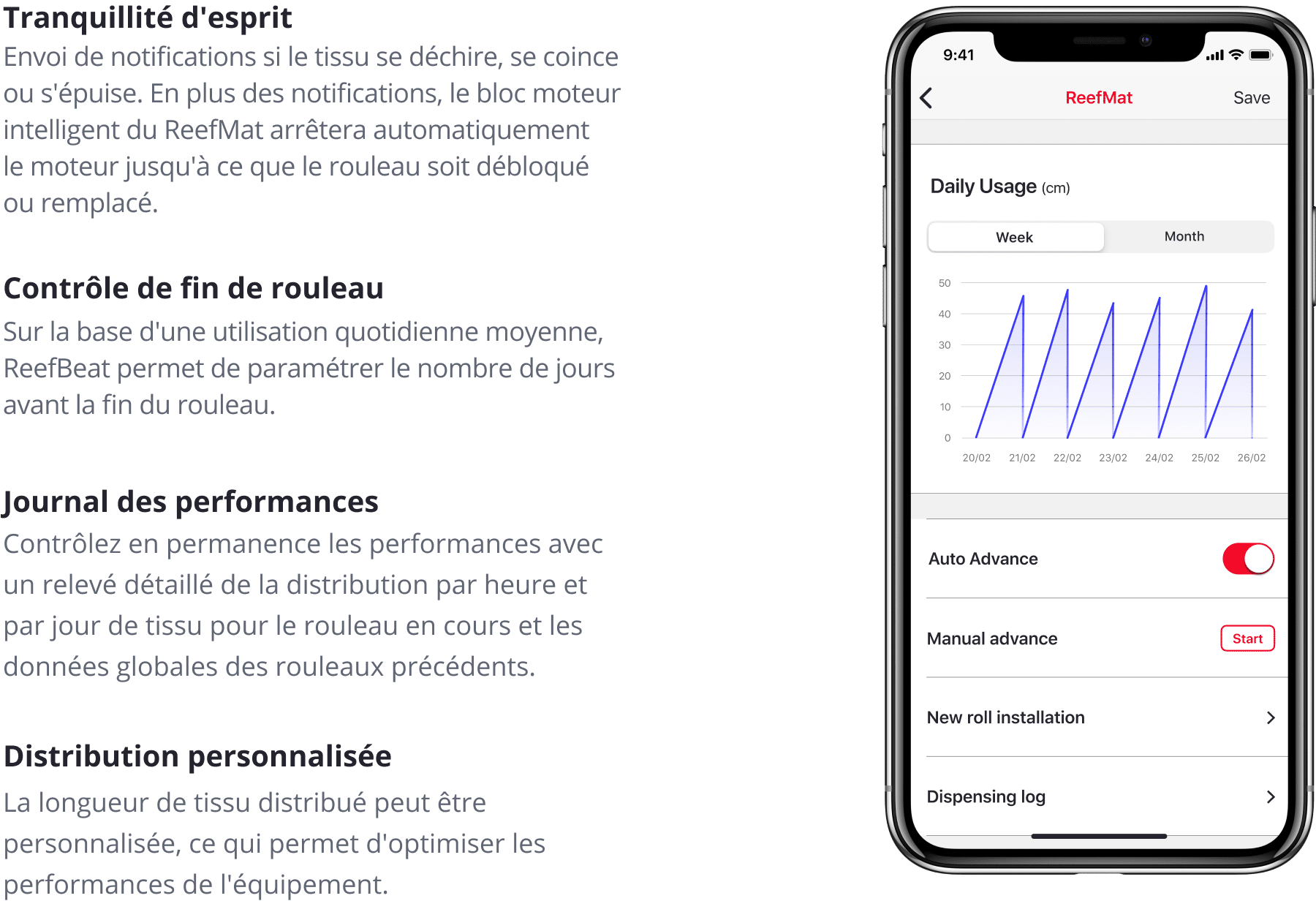

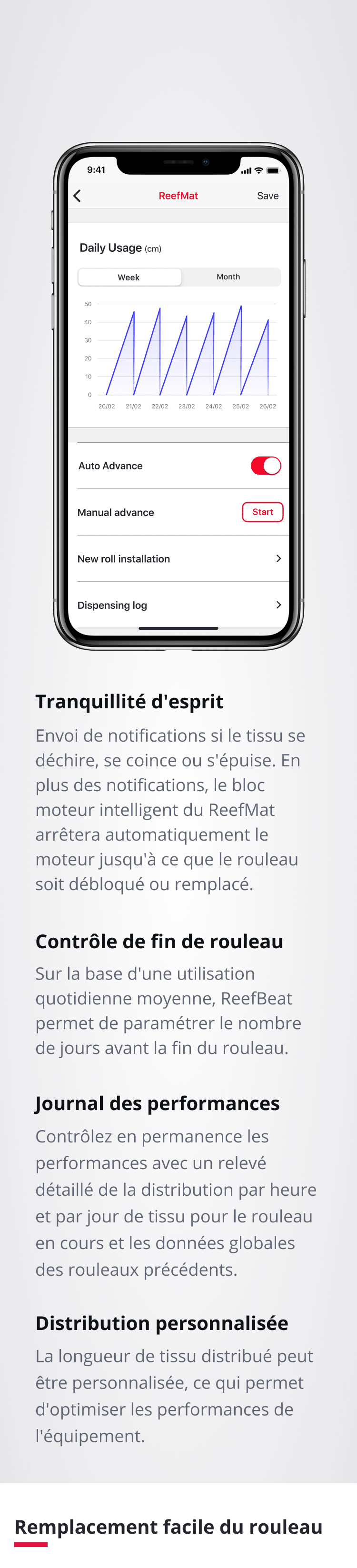

Current status of all features of the ReefMat.
Based on the average daily usage, ReefBeat lets you know your preferred number of days before the roll is due to end.
Continuously monitor performance with a detailed daily & hourly fleece-mat dispensing record for the current roll.
The length of fleece-mat dispensed can be customized, allowing for optimal system performance.
Overall performance stats for all used rolls.
ReefMat includes a fail-proof solid-state level sensor, as well as a smart drive unit that connects it to the ReefBeat ecosystem, which controls and monitors the exact length of the used mat, lets you know your average Mat usage, provides you with a daily log, and gives you a head’s up a few days before the mat needs replacing.
Smart.

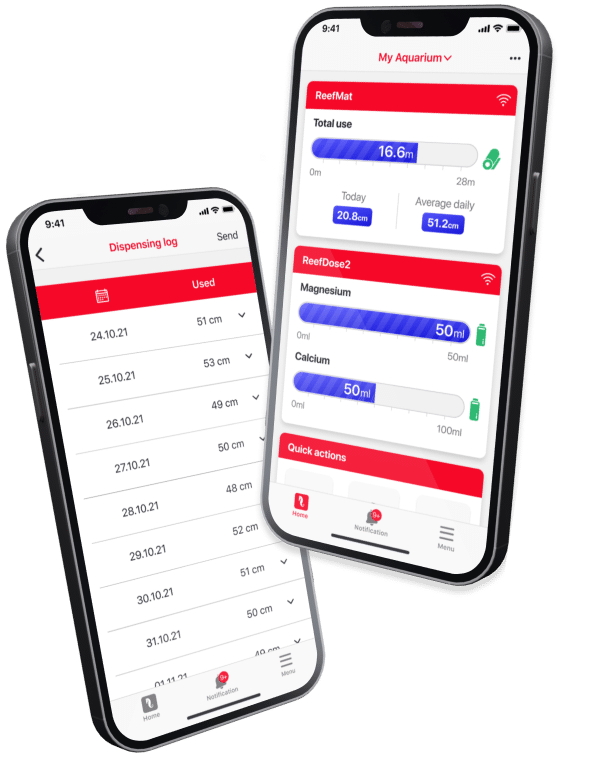

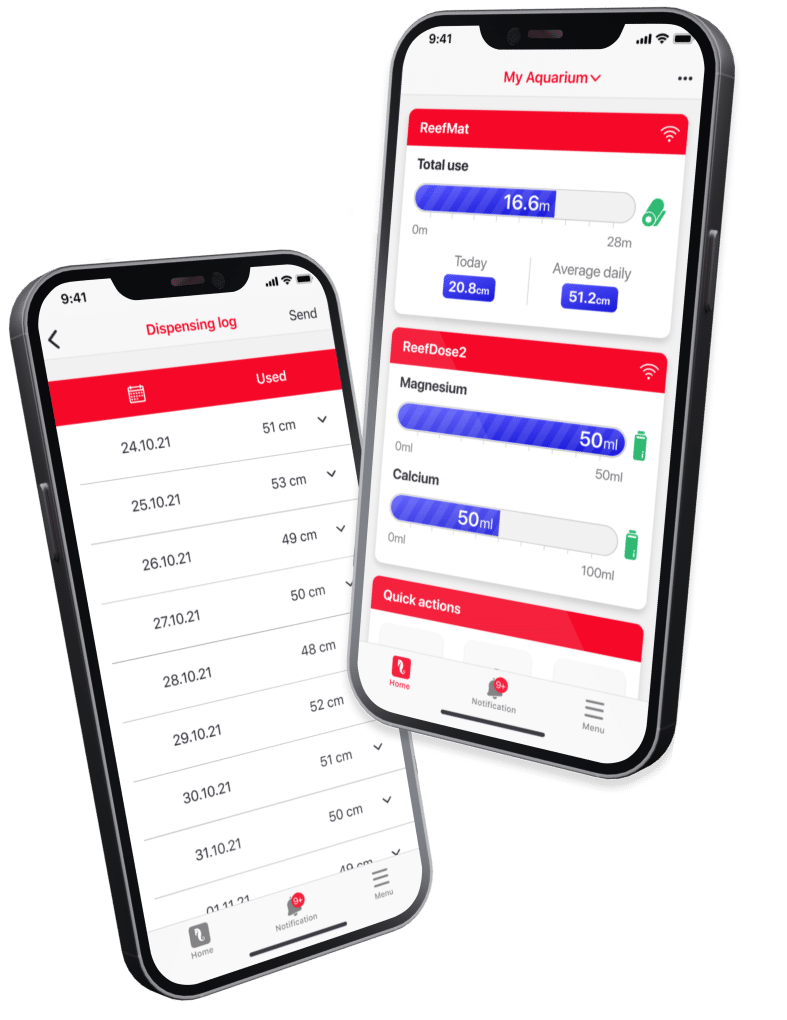

ReefBeat App
One App to Control Them All!
ReefBeat integrates all of Red Sea’s smart devices into one synchronized ecosystem that you can fully control from the palm of your hand, providing you with extra peace of mind, as just a quick glance will update you on the status of all your devices.

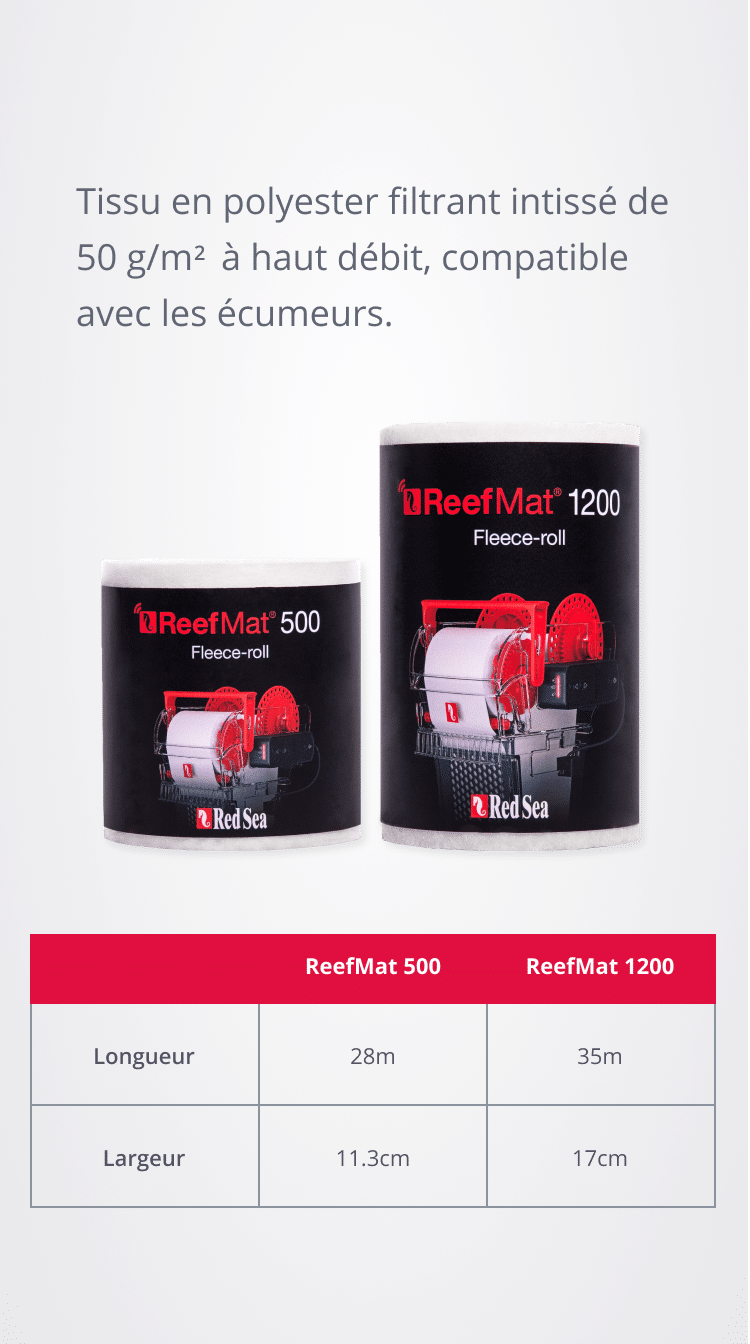

Fleece-rolls
Efficient, high-flow, skimmer friendly, non-woven polyester fleece-mat rolls.
ReefMat 250
105′
Length
3.2″
Width
ReefMat 500
92′
Length
4.4″
Width
ReefMat 1200
115′
Length
6.7″
Width

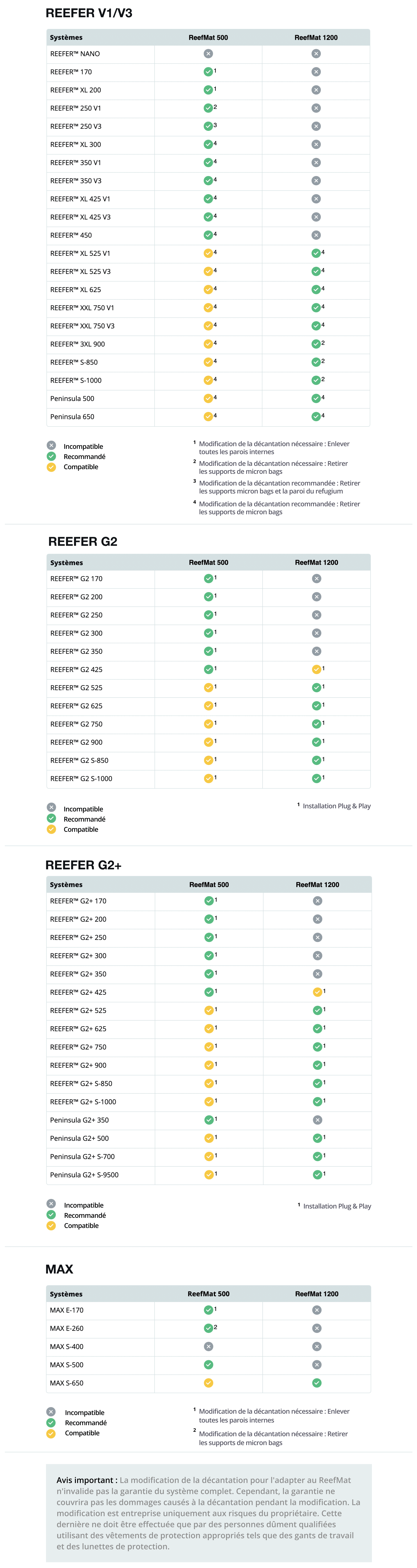

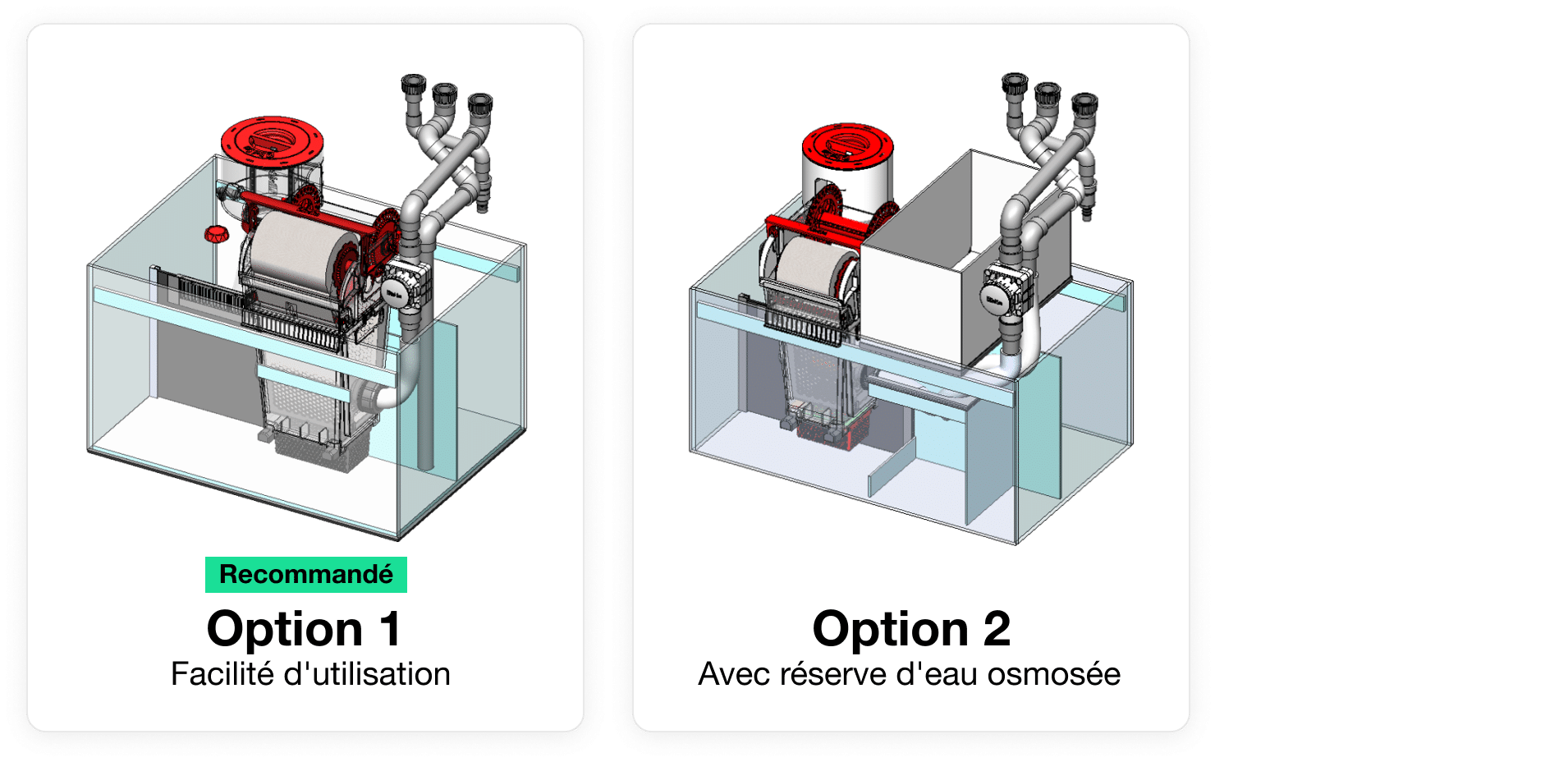

Installing a ReefMat in your Red Sea Sump
Check out the various options for replacing the filter socks/cups with a ReefMat in your specific model (REEFER G1 only)
Check out
Accessories

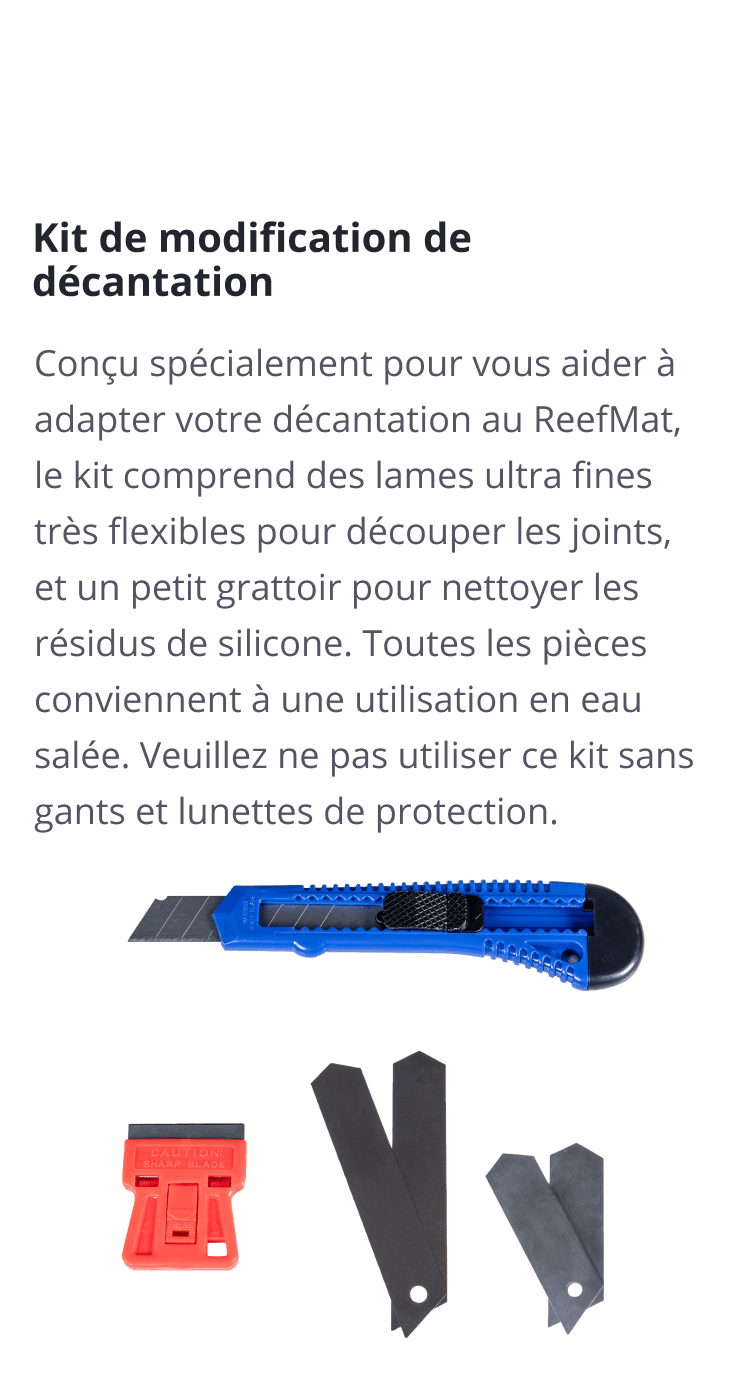

Sump Modification Kit
Manufactured specifically to help you ready your sump for a ReefMat, the kit Includes highly flexible, ultra-thin blades for cutting through the silicone joins, and a small scraper to tidy up any leftover silicone.
All parts are suitable for using inside saltwater.
Please do not use this kit without protective gloves and eye protectors.
